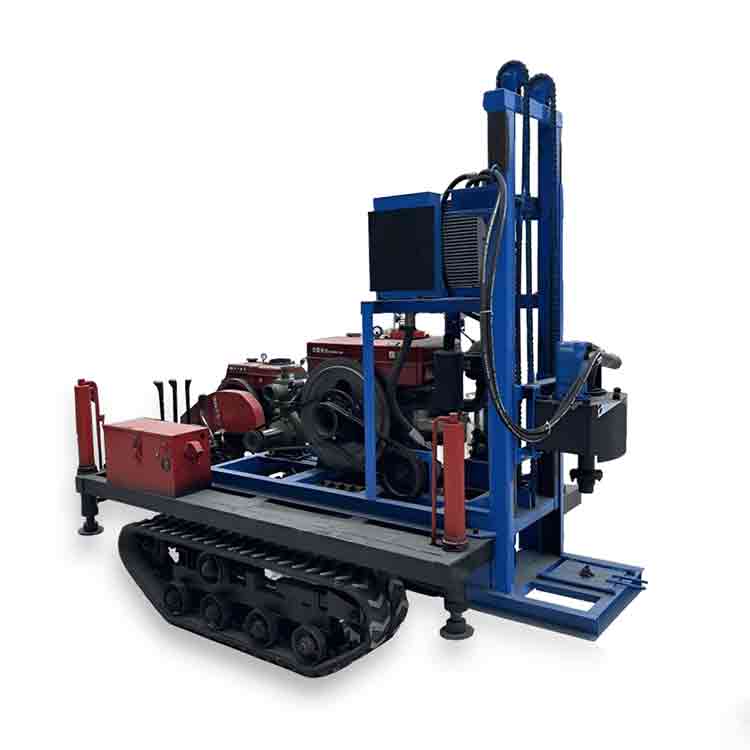

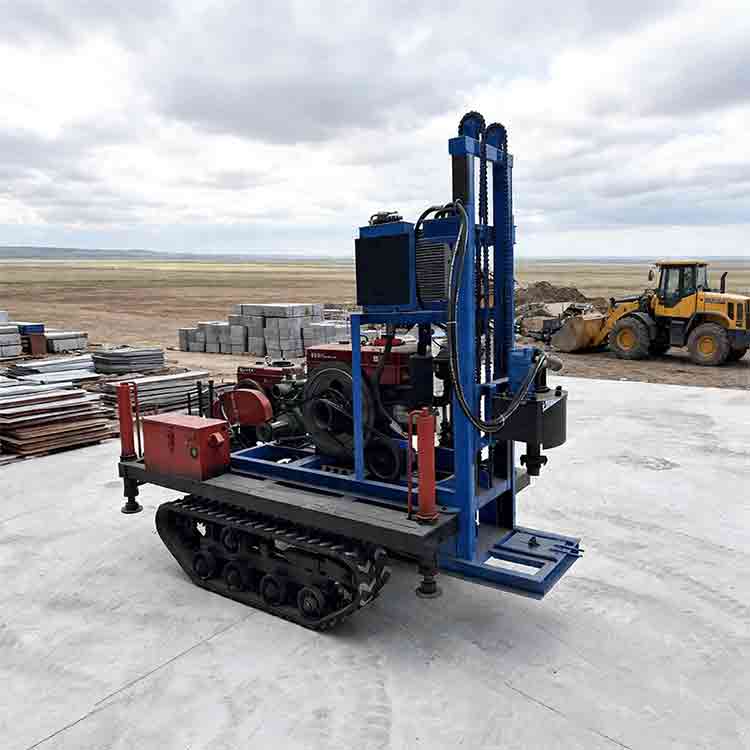

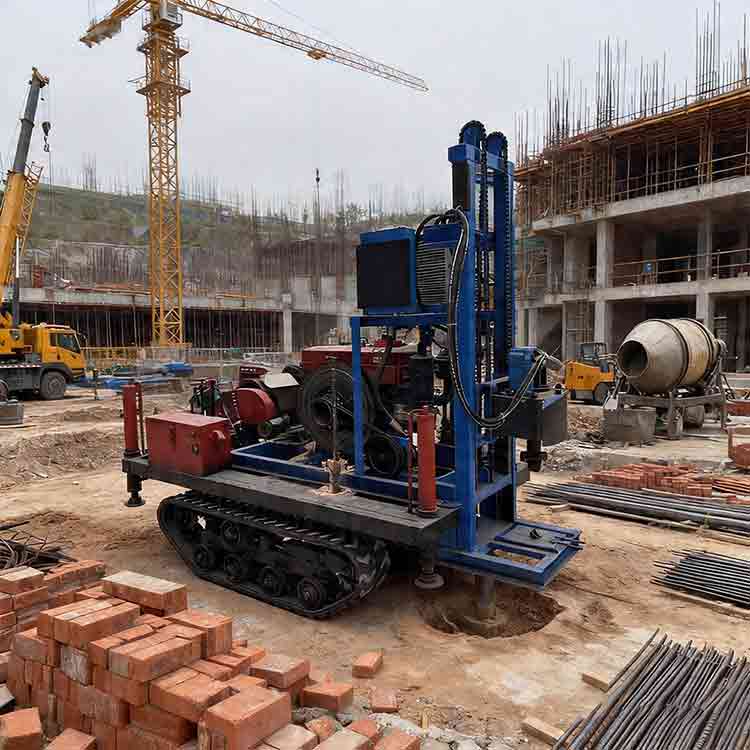

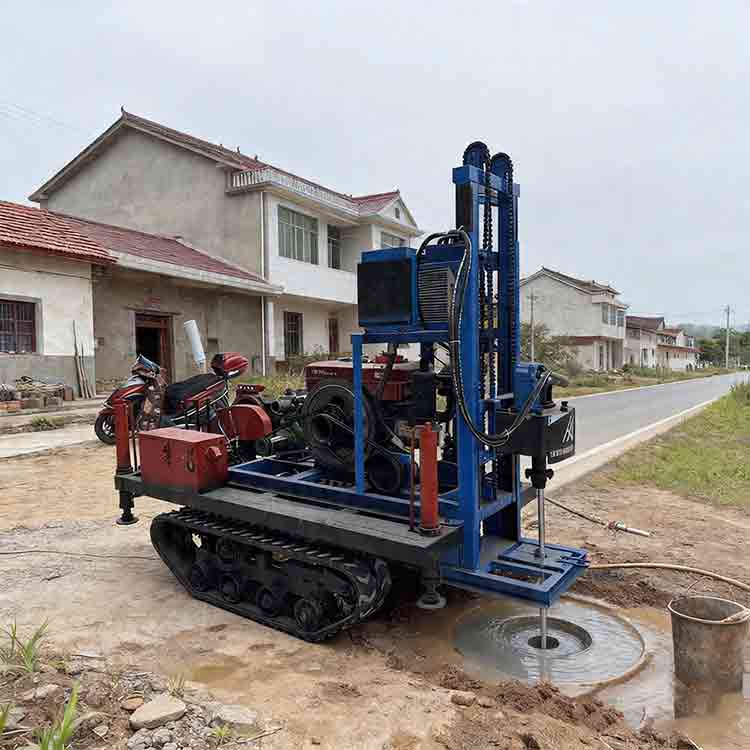

Vertical-Mounted Crawler Hydraulic Water Well Drilling Rig

Equipped with electric start diesel engine to reduce labor intensity. Full hydraulic system with radiator ensures continuous high-efficiency operation. High-power hydraulic motor enables forward and reverse rotation, and hydraulic lifting and lowering is easy to control. Built-in water pump realizes efficient slag removal. Rubber steel wire track allows flexible movement without damaging roads, with compact and reasonable structure.

Direct manufacturer with competitive price

Strict quality control from production to delivery

Powerful and efficient machines for different jobs

Exported to 30+ countries worldwide

Description

Advantages	Basic Parameters	Unit	Factory	Packaging Volume (CBM)	Packaging Weight (KG)
1. The diesel engine is equipped with electric start for easy operation, reducing the operator’s labor intensity. 2. The drilling rig adopts hydraulic working principle and is equipped with a radiator, enabling continuous and efficient operation. 3. Equipped with high-power hydraulic motor, the power head can rotate forward and reverse. 4. The drill stand is equipped with a hydraulic cylinder, which can be lifted and lowered by operating the handle. 5. The drilling rig has a built-in water pump with reasonable structure, compact layout and good slag discharge effect. 6. The crawler version is equipped with rubber steel wire crawler belts, which is convenient to move and will not damage the road surface when walking on urban roads.	+ Walking style: Tire traction type + Total machine power: Single-cylinder diesel engine / 22 horsepower + Total vehicle weight: 950kg + Overall dimensions: 210015001800mm + Power head: BM5-200 Hydraulic Motor + Compression system: Hydraulic Cylinder with Force Addition Type + Leg support: 4 hydraulic legs + Rod size specification: 50*1500mm + borehole diameter: 80-300mm + drilling depth: 0-150m + travel of slide rail: 2400mm + Rise height: 2600mm + One-time push-through length: 1500mm	set	Tianhua	6	1100
