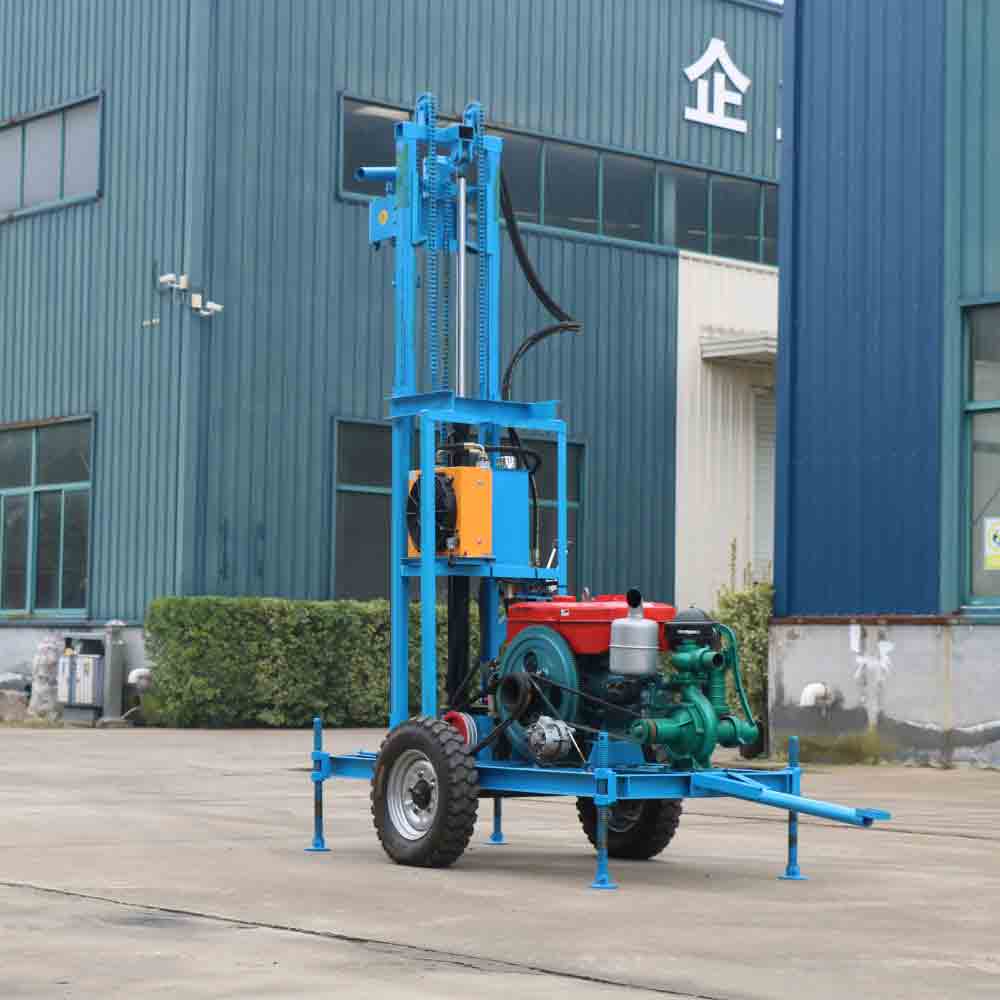

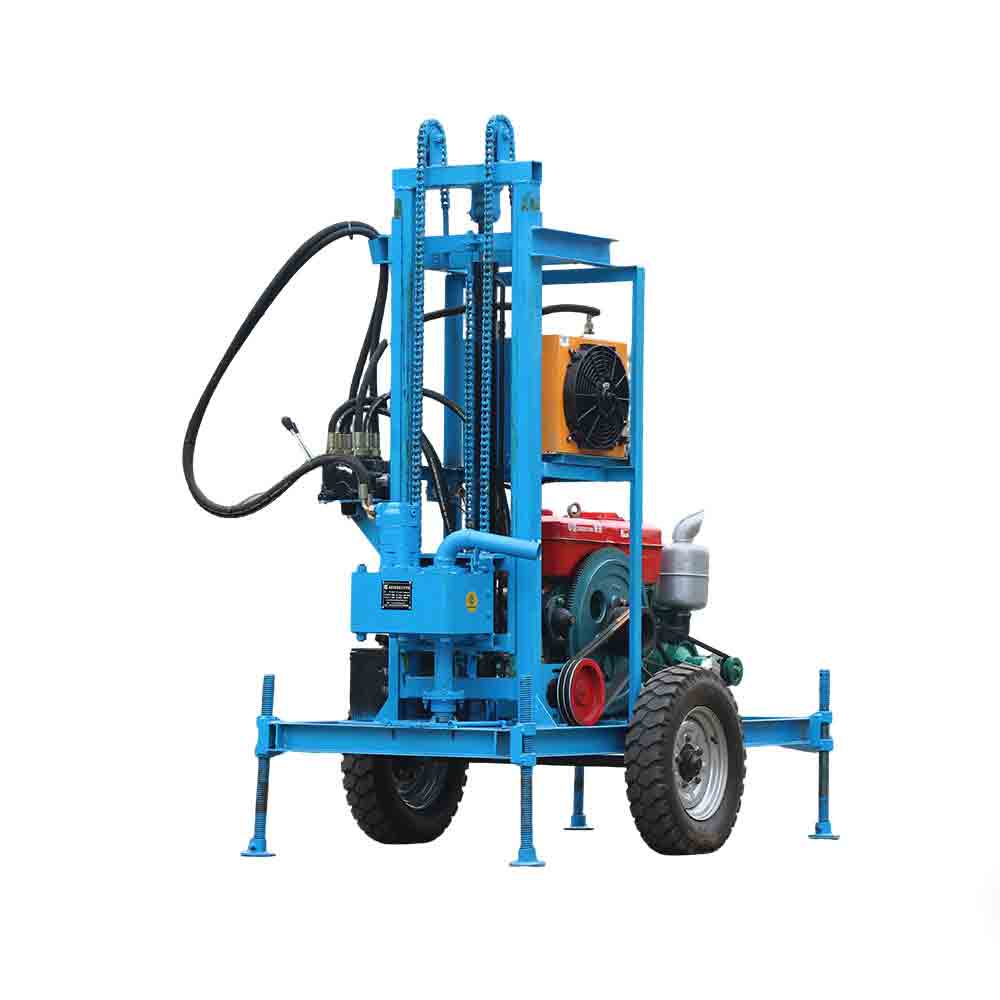

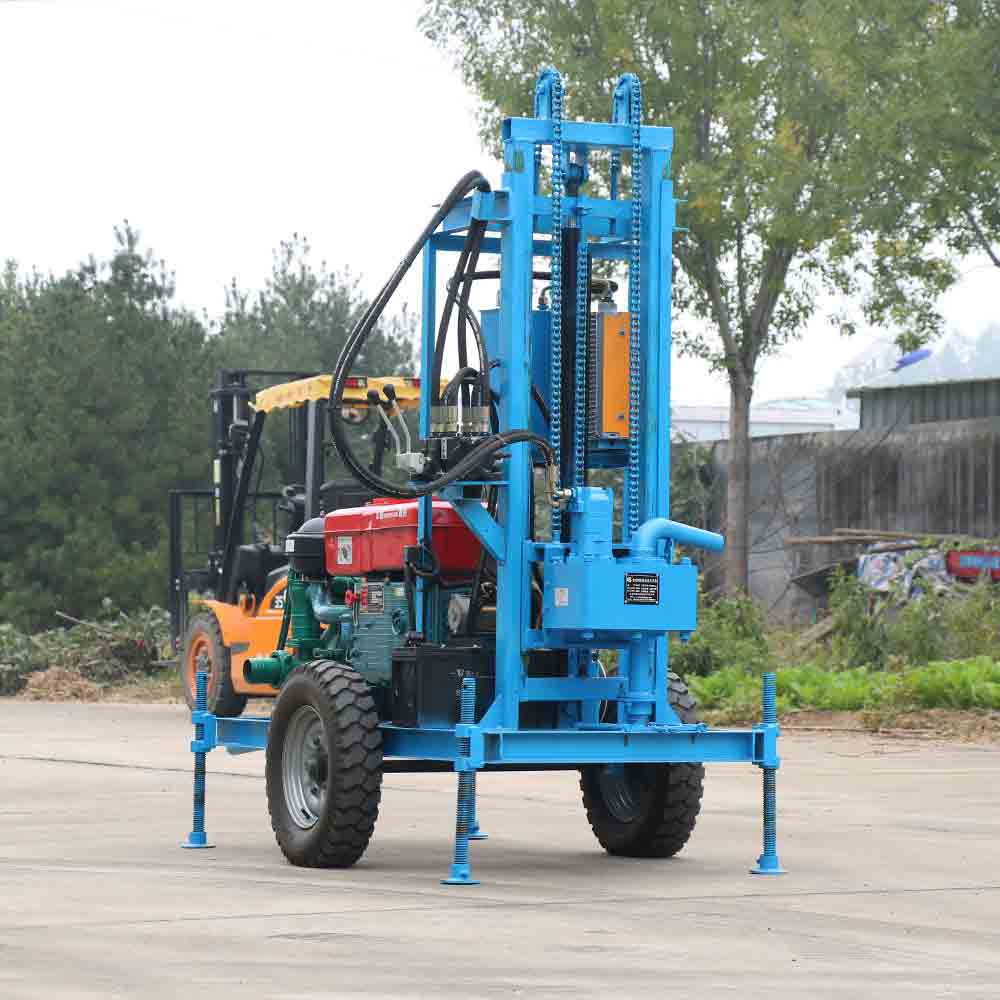

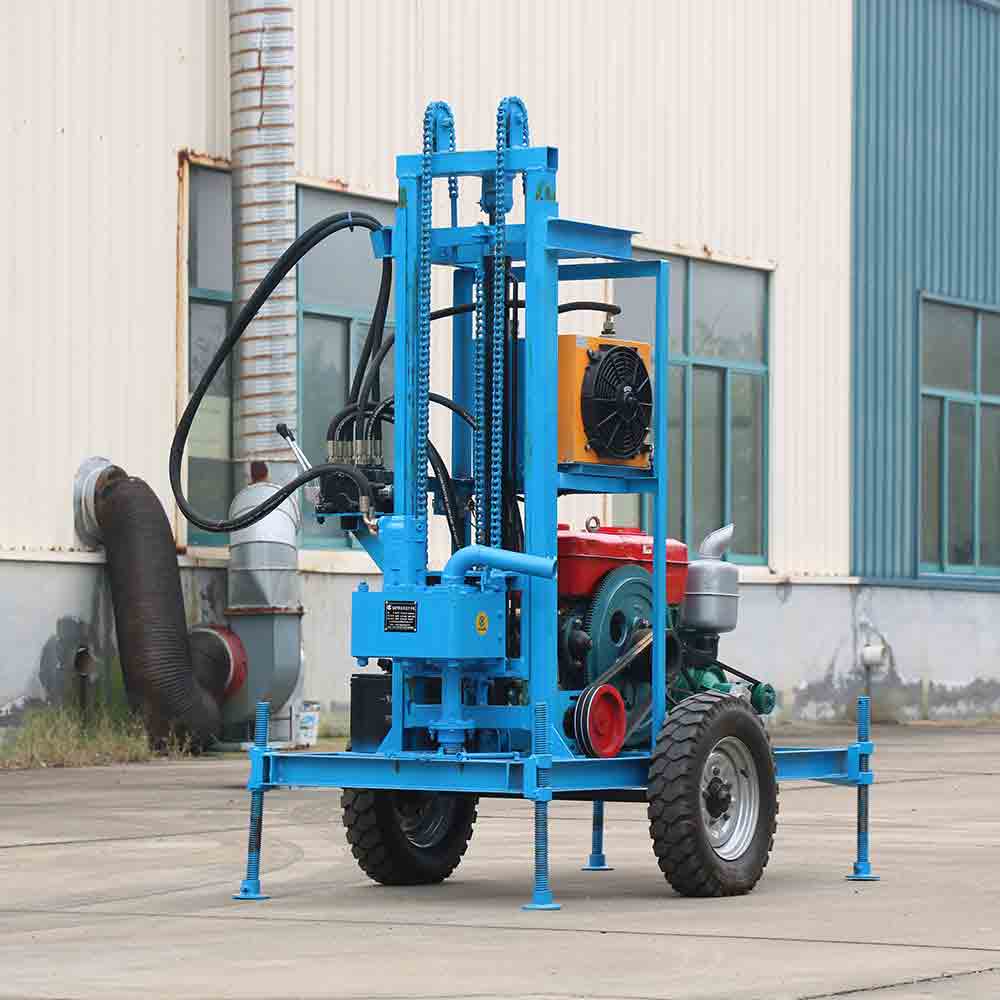

Hydraulic Water Well Drilling Rig

This series of full-hydraulic water well drilling rigs is specially designed for water well projects in loose formations such as clay, sand layers, pebble layers and a small amount of weathered rock. Widely applied in rural drinking water supply, agricultural irrigation, ground source heat pumps, engineering dewatering and other scenarios, it is a cost-effective drilling equipment tailored for the markets of overseas developing countries.

Direct manufacturer with competitive price

Strict quality control from production to delivery

Powerful and efficient machines for different jobs

Exported to 30+ countries worldwide

Description

Advantages	Basic Parameters	Unit	Factory	Packaging Volume (CBM)	Packaging Weight (KG)
1. The diesel engine is equipped with electric start for easy operation, reducing the operator’s labor intensity. 2. The drilling rig adopts hydraulic working principle and is equipped with a radiator, enabling continuous and efficient operation. 3. Equipped with high-power hydraulic motor, the power head can rotate forward and reverse. 4. The drill stand is equipped with a hydraulic cylinder, which can be lifted and lowered by operating the handle. 5. The drilling rig has a built-in water pump with reasonable structure, compact layout and good slag discharge effect. 6. Wheel-type traction movement for convenient and quick site transfer.	+ Walking style: Tire traction type + Total machine power: Single-cylinder diesel engine / 22 horsepower + Total vehicle weight: 560kg + Overall dimensions: 19009801800mm + Power head: BM5-200 Hydraulic Motor + Compression system: Hydraulic Cylinder with Force Addition Type + Leg support: 4 screw leg supports + Rod size specification: 50*1500mm + borehole diameter: 80-300mm + drilling depth: 0-150m + travel of slide rail: 2400mm + Rise height: 2600mm + One-time push-through length: 1500mm	set	Huihao	5	650

Product Introduction	Function Introduction	Standard Product Features	Upgrade Configuration	Drill Bit Selection	Standard Colors	Work Scenario
This series of full-hydraulic water well drilling rigs is designed for water well projects in loose formations such as clay, sand, gravel, and a small amount of weathered rock. It is widely used in rural drinking water, agricultural irrigation, geothermal heat pumps, engineering dewatering and other scenarios, and is a cost-effective drilling equipment for overseas developing country markets.	Full hydraulic drive, infinitely variable speed with high-torque motor for efficient drilling; Electric start diesel engine with dedicated heat dissipation system for stable operation in high-temperature environments; Built-in water pump for positive circulation slag discharge; Wheel / crawler multi-mode walking for all-scenario construction; Compact structure, common accessories for easy maintenance.	22 HP Changzhou single-cylinder water-cooled engine; Diesel engine accessories (start battery + electric start motor + fuel tank + air filter + cooling water tank); High-torque hydraulic power head; Hydraulic cylinder; Hydraulic gear oil pump; Multi-way directional control valve group; Hydraulic accessories (high-pressure oil pipe + joints + filter + pressure gauge); Main body welded frame + traction frame; Sliding frame assembly (guide rail + lifting power head bracket); Walking tires + walking axle + bearing assembly; Screw leg assembly; Electrical assembly (electric door lock + start switch + wiring harness + insurance); Control handle + console parts.	25 HP Changzhou single-cylinder water-cooled diesel engine; 28 HP Changzhou single-cylinder water-cooled diesel engine; 32 HP Changzhou single-cylinder water-cooled diesel engine; 35 HP Changzhou single-cylinder water-cooled diesel engine; 25 HP RunTong Euro V two-cylinder air-cooled diesel engine; 25 HP EPA RunTong Euro V two-cylinder air-cooled gasoline engine; 35 HP EPA RunTong Euro V two-cylinder air-cooled diesel engine;	Drill pipe: Φ50mm/L1.5/6.5kg/pc Three-wing alloy drag bit: Φ8~35cm PDC non-core composite bit: Φ6/8/10/13/15/20/25/30/35cm	Blue	Africa & Middle East: Rural drinking water wells and drought-resistant irrigation wells. In Africa and the Middle East, hydraulic water well drilling rigs are mainly used for rural drinking water wells and drought-resistant irrigation wells. These water wells are crucial for meeting domestic water and agricultural irrigation needs in areas with relatively scarce water resources. Southeast Asia: Agricultural irrigation, geothermal heat pumps, engineering dewatering. Southeast Asia has a humid climate and developed agriculture, where hydraulic water well drilling rigs can be used for agricultural irrigation. Meanwhile, there is also demand in geothermal heat pumps and engineering dewatering fields to support local agricultural and engineering construction. South America: Mine auxiliary water, ranch water wells. South America has many mines and ranches, where hydraulic water well drilling rigs can provide auxiliary water for mines to meet the water demand during mine production. They can also drill water wells for ranches to ensure drinking water supply for livestock. Eastern Europe & Central Asia: Domestic water wells, ground pipe heat exchange holes. In Eastern Europe and Central Asia, residents have a demand for domestic water wells to solve daily domestic water problems. In addition, hydraulic water well drilling rigs are also used in the construction of ground pipe heat exchange holes for geothermal heat pump systems.
